Project 3: A1 poster

The Clashing of Two Entities

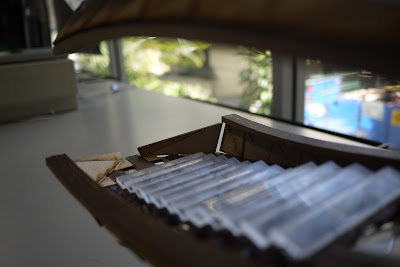

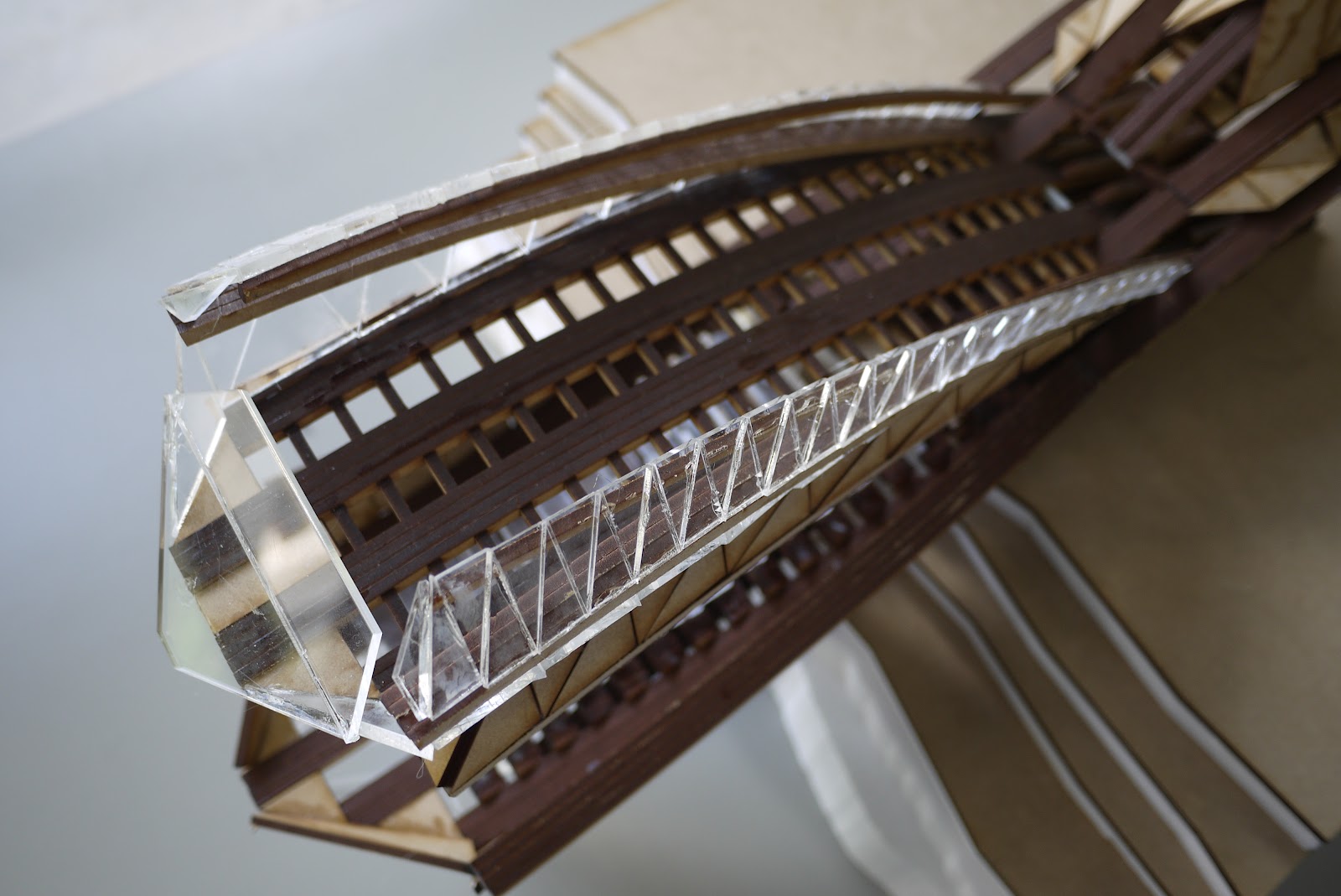

Project 3: 3D Model of School

MDF -Aluminium

Acrylic - Glass

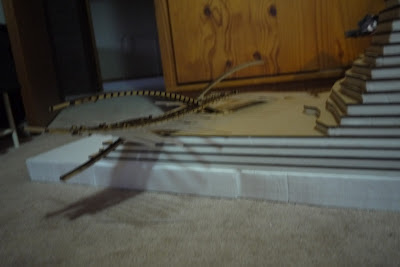

Site Contours - Styrofoam and MDF

Source: B.Lin, 2012

Project 3: Week 11 - Plans, Sections,Tectonics

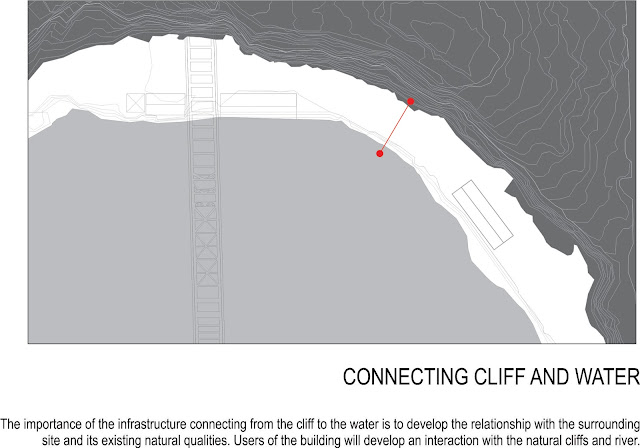

Site, Plans, Sections, Details

Source: H. Thach, 2012

Section A-A

Source: H. Thach, 2012

Closed Position

Source: H. Thach, 2012

Operational Diagram : Funtionality of Open and Close

Operational Diagram : Flood Prevention Function

The building can elevate above flood level in the prevention of a flood and server damage.

Operational Diagram : Sun Direction Function

The building is orientated in the current position so that it can obtain the maximum sunlight through the building as the sun path moves from east to west of the northern pathway.

Project 3: Space Planning

- non-programmed public space [internal and/or external] 80sqm

- general performance/class space [with stage + small backstage area] 100sqm

- space for performance/classes of ‘aerial silks’ [6-9m high] 50sqm

- room for life drawing [needs to be divisible into 2 spaces] 20sqm

- a small cafe [restricted to 3.5m width] 35sqm

- administration/offices 40sqm + services

- entry foyer variable

+ services [wc, store, kitchenett for staff, circulation, etc] approx. 30%

total approx. 500sqm

Source: C. Trinh, 2012
